技術指標 Electrical specifications | |
頻率范圍 Frequency Range(MHz) | 2G/3G/4G/3300-3800 |
極化方式 Polarization | 垂直+水平 (±45°) |
增益 Gain(dBi) | 8-10 |
前后比 Front To Back Ratio (dB) | 27 |
半功率角 Half-power Beam Width(°) | H: 76° E: 66° |
阻抗 Impedance(Ω) | Ω50 |
駐波比 V.S.W.R | ≤2 |
功率容量 Max. Input Power (W) | 100 |
雷電保護 Lightning Protection | 直接接地 |
機械指標 Mechanical specifications | |
接頭 Connector | N座*2 或SMA*2 |
長度*最大直徑 Dimension (H*W*D)/Max. Diameter (mm) | 330*180-80 |
天線重量 Weight(Kg) | 1 |
抗風能力 Rated Wind Velocity(m/s) | 60m/s |
工作溫度 Operating Temperature(℃) | -40 ~ +60 |
工作濕度 Humidity | 95% |
安裝方式 Installation | 抱桿安裝/地面安裝 |
天線罩材料 Radome Material | ABS |

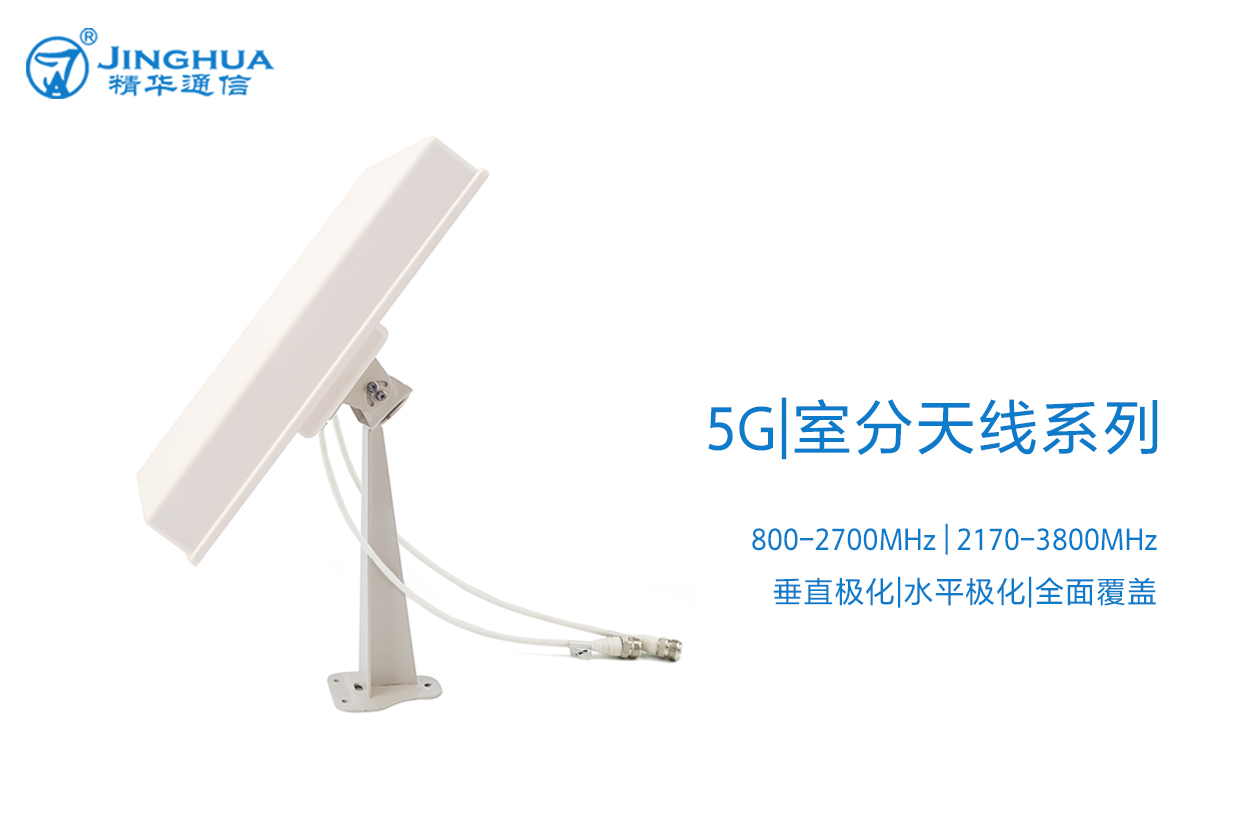

精華全新研發5G系列天線,全網通用的雙極化定向天線。自帶雙輸入/輸入插頭,頻率覆蓋范圍極廣,能夠完美配合現有4G以及未來5G室內信號覆蓋的應用。我們的產品具有高增益,高效率,質量輕,防水防曬等特點,適合戶外或者室內使用。
精華全新研發5G系列天線,自帶雙輸入/輸入插頭,頻率覆蓋范圍極廣,能夠完美配合現有800-2700MHz的4G覆蓋系統以及未來5G室內信號覆蓋的應用。我們的產品 具有高增益,高效率,質量輕,防水防曬等特點,適合戶外或者室內使用。我司的壁掛天線和吸頂天線產品被廣泛應用在各城市的地下室、車庫、高層樓宇及商場等室內覆蓋網絡當中,為目前全球5G網絡的迅猛發展提供有力的硬件支撐。
With two ports for both signal input and output, our 5G Series antennas are multitask, lightweight, and they provide high gains and constant performance across a broad frequency range from 800MHz to 4200MHz, with your choice of pole/wall installation. The antenna is suitable for outdoor or indoor use.
Broad Response --- With 1500/2000MHz bandwidth, this antenna provides ideal performance in single or multi-frequency system.
High Gain --- 6-8dBi gain provides optimized pattern coverage for either indoor or outdoor applications.
Dual band MIMO --- With dual ports working together, users could enjoy fast network from newest 5G technology while the 3G/4G signals unaffected.
Weather Resistant --- DC ground for lightning protection and IP67 waterproof level for our products to work under extreme weather conditions.
Also In Package ---Product test report and installation manual will be provided to each set of Jinghua antenna.
Customization --- These antennas can be customized for different frequencies and gains.
